The Fastest COTS Telemetry Interfaces Available!

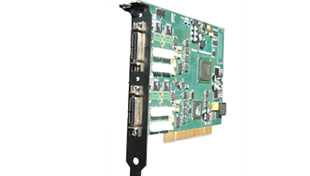

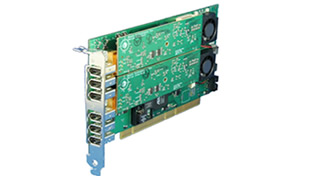

Reach single channel and two channel Telemetry Interfaces incorporate leading edge technology for high-performance, cost-effective input or output of serial or parallel telemetry data streams at serial data rates up to 1 Gbps.

Features and Options

Multi-Channel Synchronization
When multiple boards are used, any subset of the channels may be synchronized for output and any subset of the channels may be synchronized for input. Synchronization is within +/- 1 bit between channels.

Bit Error Rate Tester (BERT) Option
For testing Telemetry Interface operation

Provides 2^23 PRBS output from the Interface

Provides checking of 2^23 PRBS on input

Custom Xilinx Download Options
Custom Xilinx downloads are available for specialized telemetry applications.

VCXO Reference Clock Option
Software trimmable reference clock for the transmit clock synthesizer.

TCXO Reference Clock Option
Temperature compensated reference clock for the transmit clock synthesizer.

Software Development Kit ("SDK")
The SDK enables the user to write software to transmit and/or receive data from the Telemetry Interface. The device driver for Windows XP/Vista and the software components provided, encapsulate the hardware in an easy to use software interface. Active-X, VCL, and .NET components are included. The components may be used with Delphi, Microsoft Visual Studio, LabView, LabWindows and other 3rd party tools to create applications for telemetry ingest or simulation.

High-Speed I/O Options
High-speed interfaces require I/O modules to connect to standard connectors. I/O module choices include:

SMA I/O modules

TRIAX I/O modules

BNC I/O modules

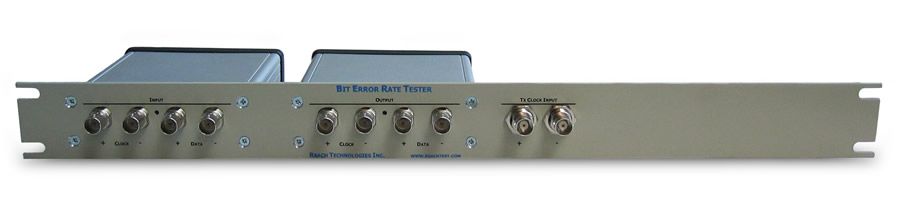

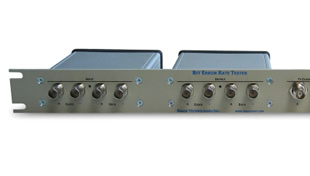

* 1U Rack mountable I/O modules are also available.

Telemetry Interface - Datasheet
